Electrical System
Vehicle neural network is the carrier of circuit signal transmission and control, providing stable power, signal and data for the electronic devices in the vehicle.
High and low voltage electrical connection
Intelligent power management system of electrical architecture
High-speed data transmission
-

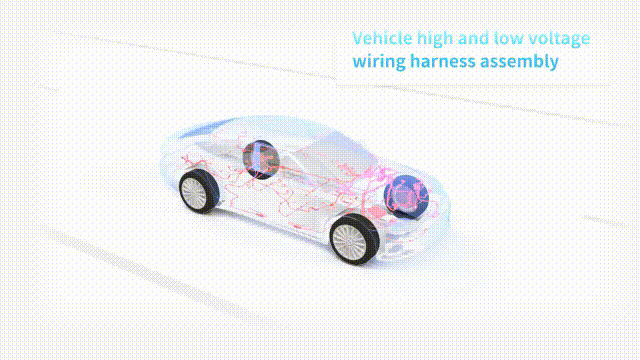

High and Low Voltage Electrical Connection
-
Intelligent Power Management System of Electrical Architecture
-
High-speed Data Transmission

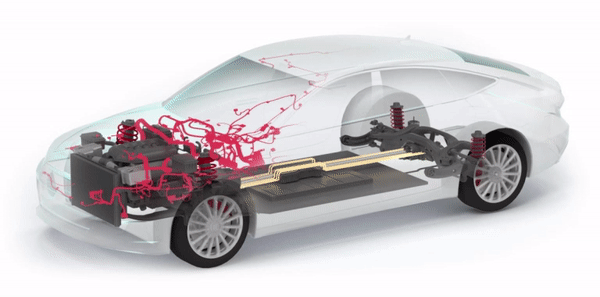

Main unit of vehicle network uses wire and electric connecting parts to convert them into electrical circuit connecting physical objects according to the space location of distribution of each electrical device, sensor and control module in the vehicle and the logic relationship of circuit of the vehicle.
-
Low Voltage Harness
-
High Voltage Harness
-
Connectors
-
Low Voltage Harness
-
High Voltage Harness
-
Connectors
-
Harness of the Entire VehicleResearch and development and manufacturing system of harness of the entire vehicle composite neural network of the vehicle
-
New Energy ProductsIndependent research and development and manufacturing of electrical connection based on harness of the entire vehicle can be customized in accordance with different requirements and different new energy vehicle models
-
Research and Development and Design CapabilityTheoretical design, 3D wiring, 2D drawings and experiment and simulation and others for electronic and electric architecture of the entire vehicle or harness of the entire vehicle
-
High Efficiency and SafetyIntelligent comprehensive data center, multi-dimensional management

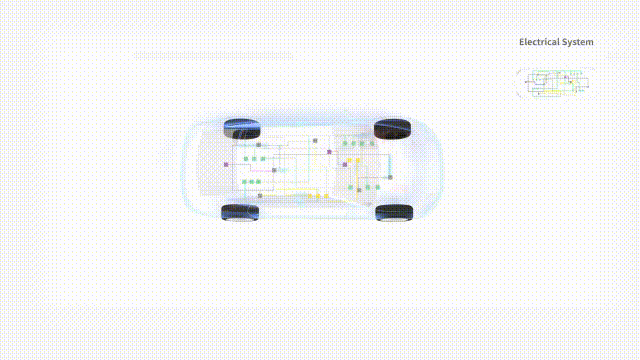

Provide integration solutions for Class I/Class II power distribution systems of electrical architecture of the entire vehicle and solutions for domain controller redundant power distribution system of the entire vehicle. Customized product solutions are provided with integration of power distribution system and multi-functional integration of intelligent power grid management, redundant power distribution and troubleshooting/self-recovery.
-
Intelligent Power Distribution Box
-
Circular Redundant Power Distribution Unit
-
Intelligent Power Distribution Box
-
Circular Redundant Power Distribution Unit
-
Local Power Distribution ArchitectureIntegrate power distribution center of multi-class PDUs, power supply by proximity and harness optimization
-
Safe Isolation of Power and Redundancy ArchitectureBasic load and safe load isolation power supply realizes redundant power distribution of power supply, intelligent troubleshooting and self-recovery of high-order automatic driving system.Circular structure ensures that failure is isolated and the system does not dysfunction.
-
Rapid ResponsePower drive chip module replaces traditional fuse/relay, and realizes μ second-level intelligent control and monitoring
-
Energy Saving and High EfficiencyLight weight: E-fuse module realizes precision control, and power cable diameter is optimized by 20%Mute: electronic switch disconnects free from noiseLow power consumption: voltage disconnection is free from resistance value and hot melting consumption, and at the same time, service life of the product increases by 5 times.

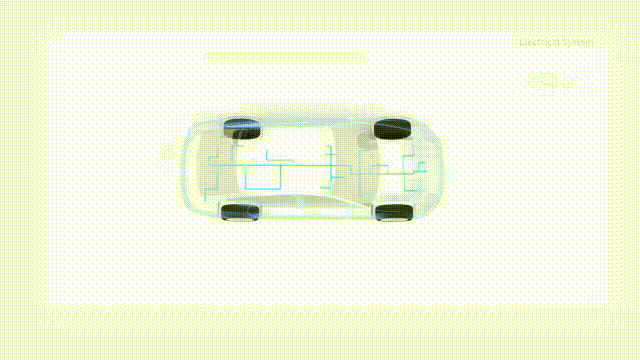

Vehicle-use data cable is the dedicated transmission cable for transmitting data such as on-board AM/FM, 4G/5G, GPS, audio and video and communication between controllers in electrical system of vehicles, mainly used in connection of functions such as antenna, T-BOX, audio-video system, display screen, 360 all-round looking, DMS and various controllers.
-
Coaxial Data Cable
-
Coaxial Data Cable
-
Fast Transmission VelocityDedicated transmission cable for transmitting data such as on-board AM/FM, 4G/5G, GPS, audio and video and communication between controllers
-
Wide Scope of ApplicationFunctions such as camera, radio and navigation
-
Anti-interferenceAnti-inference ability is robust, and ensures effective transmission of radio-frequency signal
Including: electrical theory, 3D wiring, 2D drawings, parts development, simulation design and experiment tests. It is equipped with verification capability on three classes including parts class, sub-system class and full-vehicle class of harness.
Application to Vehicle Models
-
TANK
-

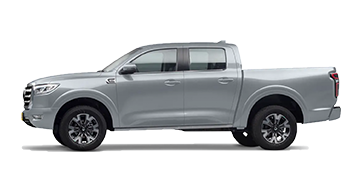

GWM POER
-
WEY
-

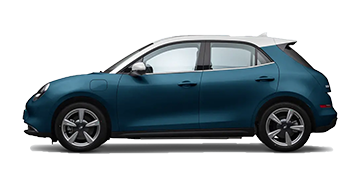

ORA
-
HAVAL
-
SAR
-

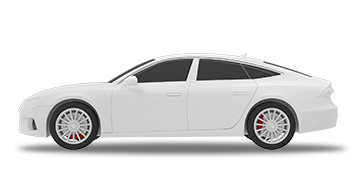

International / Joint Venture Customers
